Description
The Diamond HDMI over Ethernet Kit IPC100 includes one transmitter unit and one receiver unit allowing HDMI video/audio signal transmission and extending HDMI video/audio signal up to 230 feet over CAT6/CAT6A/CAT7. The Diamond IPC100 extender not only supports point-to-point configuration, it also extends and supports Bi-directional IR pass-through that can detect IR remote controls of the source devices from the receiver side, making source control easy.
Diamond HDMI over Ethernet Kit is an alternative to Wireless HDMI Sender and Receiver and expensive wired HDMI cables
The Diamond HDMI over Ethernet Kit – IPC100 is a powerful secure Ethernet connection HDMI Sender and Receiver. It’s a great way to enjoy and share home, classroom, entertainment from any HD source over Ethernet. The IPC100 has a transmitting range of 230 feet. As a result, you can enjoy clear, crisp HD 4K video resolution and LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH from a laptop, set-top box, Blu-ray/DVD player, DVR security or gaming console. With the IPC100, you can transmit video over longer distances than you could using a HDMI cable or wireless HDMI sender and receiver. Supports IR remote control, giving you total control over your video source.

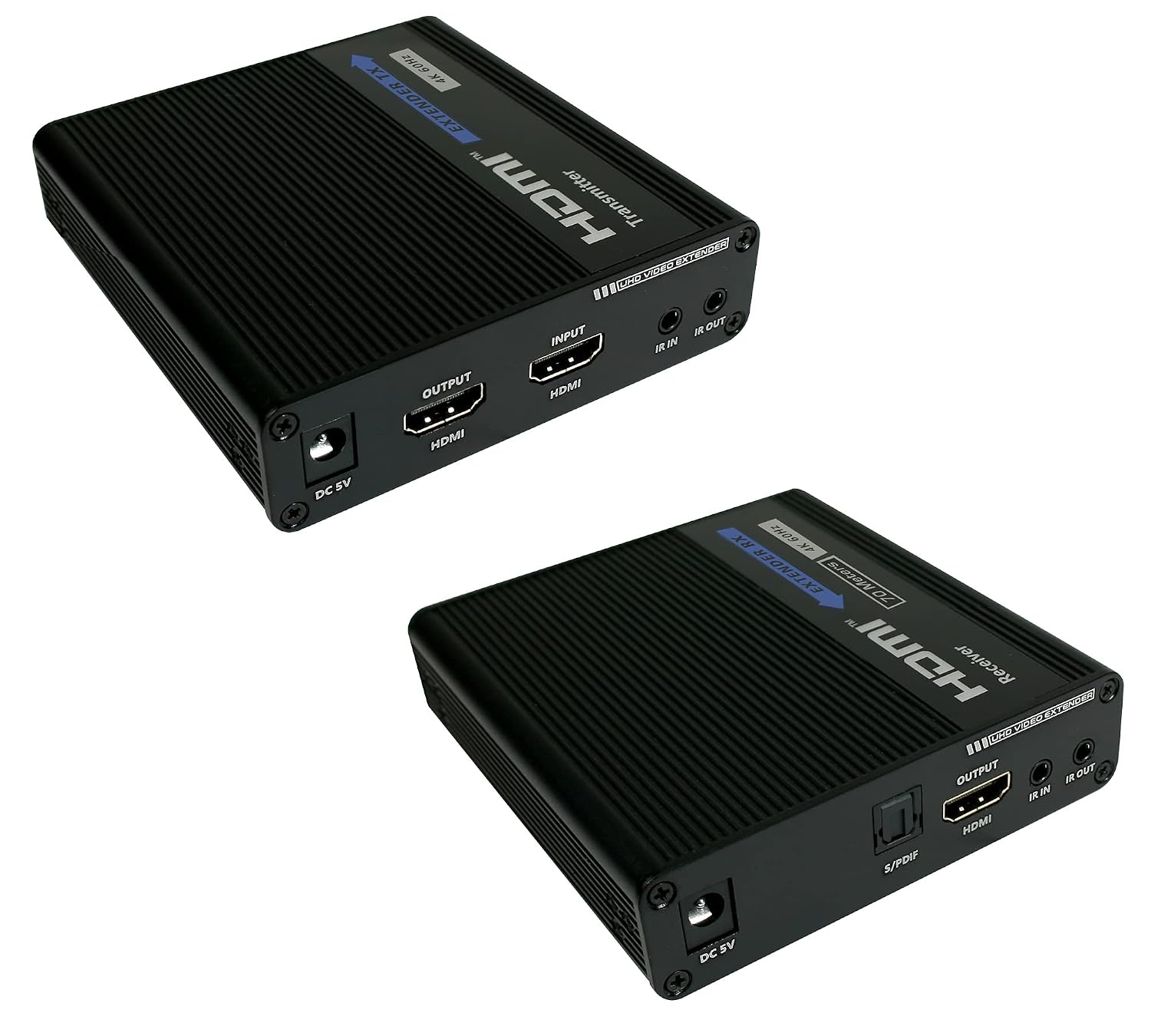

The Diamond IPC100 Sender features: an HDMI Input, an HDMI Output, RJ-45 Ethernet port, an IR in and out port to connect the included IR emitter cable and a DC power connector. In addition, the Receiver features: an HDMI-Output, RJ-45 Ethernet port, S/PDIF/ARC optical output, an IR port to connect an IR receiver cable and a DC power connector. Therefore, it is completely Plug-and-Play and requires no setup and no computer.
HDMI compliance: HDMI 2.0, compatible HDMI 1.4
HDCP compliance: HDCP 2.2, compatible HDCP 1.4
Transmission medium: CAT6/CAT6A/CAT7
Transmission distance: CAT6/6A/7 Transmission 230 feet / 70 meters
Video bandwidth: 18Gbps
Video support: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
Audio support: LPCM/DTS-HD/DTS-Audio/,Dolby Digital 5.1CH
HDR10(YUV4:4:4): Yes
HDMI Loop-out: Yes
ARC and S/PDIF out: Yes
EDID through: Yes
Bi-directional IR pass back: Yes
Input TMDS signal: 0.7~1.2Vp-p
Input DDC signal: 5Vp-p
