Diamond Multimedia USB-C Triple Display MST Docking Station 4K Monitor Support (UDC1000)

Description

MST Docking Station with 4K Monitor Support (Supports New Macbook M1 Triple Extended Displays)

The Diamond USB-C Triple Display Dock is compatible with USB Type-C 3.1 and Thunderbolt 3 Type-C ports. Supports Mac and Windows laptops equipped with a USB 3.1 Type-C port. Perfect for at home and at the office. (UDC1000)

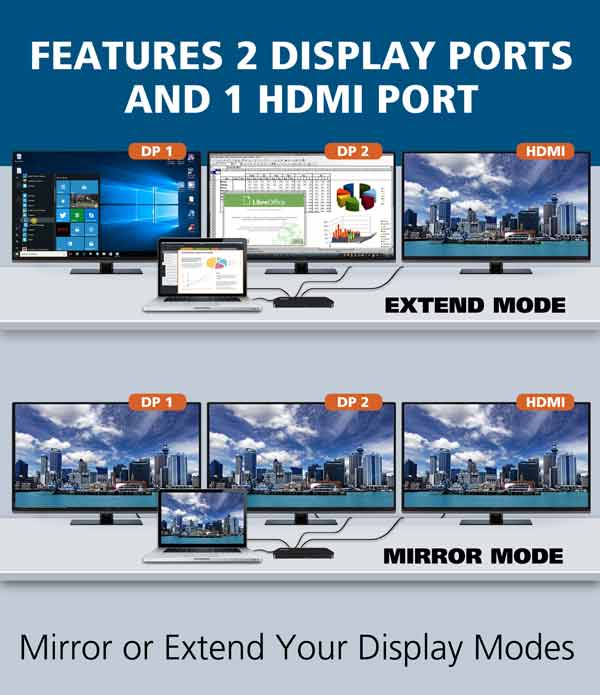

Supports new M1 Mac book  3 extended displays on theM1. Triple Display Support: DisplayPort + DisplayPort + HDMI : Resolutions up to 1920 x 1080 @ 60Hz (FHD)Universal Connectivity of the USB-C Triple Display Dock

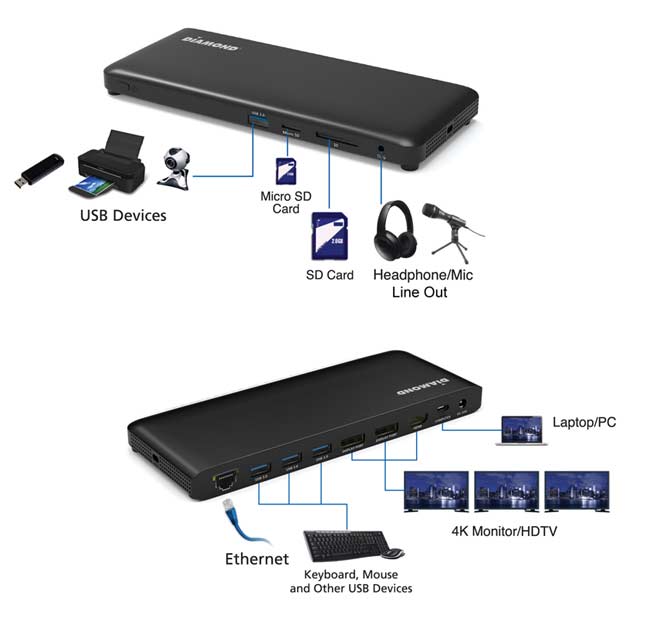

Connect multiple devices to your laptop through one connection, including 4K Monitor support, USB sticks, USB Mouse/Keyboards, Wired Ethernet Internet Connection, External Hard Drives and more. Supports DisplayPort x 2and HDMI x 1 and supports power delivery that can power your laptop (Power Adapter Included).

The Diamond USB-C Triple Display Dock (UDC1000) is compatible with USB Type C 3.1 and Thunderbolt 3 type C ports. Supports Mac and Windows laptops equipped with a USB 3.1 Type C port.  4K Monitor support, USB sticks, USB Mouse/Keyboards, Ethernet, Hard Drives, Supports DisplayPort x 2and HDMI x 1 and supports power delivery that can power your laptop (Power Adapter Included)

• USA Technical Support- Diamond Multimedia has over 30-years, experience in Graphics Computer Technology and offers support via Toll Free 800 telephone number and On-Line. Customer Support is available from our home office in Los Angeles, Ca. Diamond Multimedia offers a one-year warranty for all our products
• Connect multiple devices to your laptop through one connection, including 4K Monitor support, USB sticks, USB Mouse/Keyboards, Wired Ethernet Internet Connection, External Hard Drives and more. Supports DisplayPort x 2and HDMI x 1 and supports power delivery that can power your laptop (Power Adapter Included).

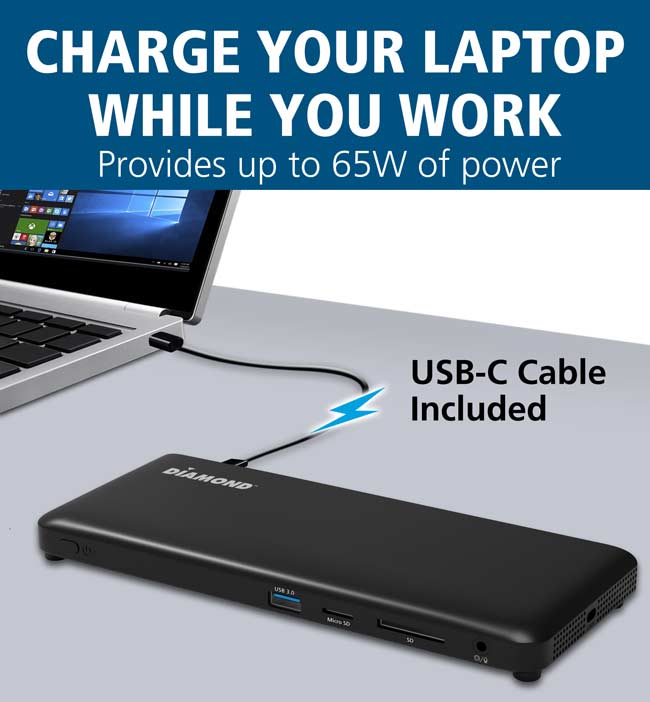

• Type-C USB3.1 Gen2 full specification PC Computer. USB Power Delivery with 4 profile support 65 Watts upstream
• DisplayPort support V1.4 x 2 HDMI V2.0 x 2, Support triple display, max. resolution up to 1920×1080@60 (HBR3 DP1.3), Support dual display, max. resolution up to 2560×1440@60 (HBR3 DP1.3), Support single display, max. resolution up to 3840×2160@60 (HBR3 DP1.3)
• Gigabit Ethernet network RJ-45 backward 10/100 Ethernet, 4-Pole 3.5mm Jack for stereo audio out and microphone in.
• Combo SD / TF Card Reader SD V3.01 support SDHC / SDXC capacity up to 2TB Four USB 3.0 Type-A ports with one port has BC1.2 fast charging

Diamond Multimedia USB-C Triple Display MST Dock Features:

• Type-C USB3.1 Gen2 full specification PC Computer. USB Power Delivery with 4 profile support 65 Watts upstream
• DisplayPort support V1.4 x 2
• HDMI V2.0 x 2
• Support triple display, max. resolution up to 1920×1080@60 (HBR3 DP1.3)
• Support dual display, max. resolution up to 2560×1440@60 (HBR3 ▪ Support single display, max. resolution up to 3840×2160@60 (HBR3 DP1.3)
• Gigabit Ethernet network RJ-45 backward 10/100 Ethernet
•  4-Pole 3.5mm Jack for stereo audio out and microphone in.  Combo SD / TF Card Reader SD V3.01 support SDHC / SDXC capacity up to 2TB
• Four USB 3.0 Type-A ports with one port has BC1.2 fast charging

Power Supply: Power Adapter 100Watts, DC20V / 5A

OS support: Windows 10 and Mac OS 10.15.3 and above

UDC1000 supports 3 extended displays on the New Macbook M1 (DisplayPort + DisplayPort + HDMI : Resolutions up to 1920 x 1080 @ 60Hz (FHD)

System Requirements: USB-C Computer USB3.1 full–function with data transfer, USB-C Power Delivery & Video Alternate Mode

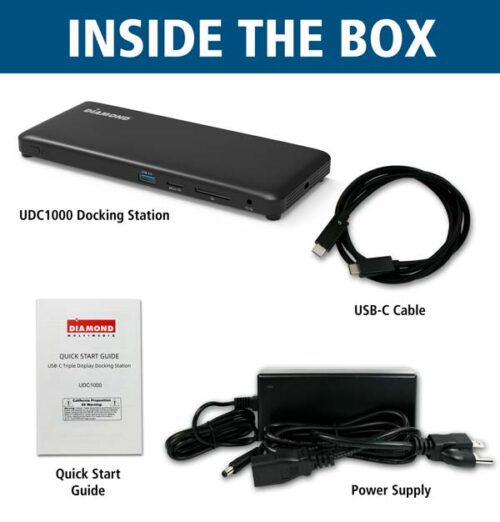

Package Content: UDC1000 docking station, Power Supply, USB-C to C Cable (eMark), User Guide

Select the Right Docking Station for You

 Finally, USA Technical Support is available. Diamond Multimedia has over 30-years, experience in Graphics Computer Technology and offers support via Toll Free 800 telephone number and online.
